3561 Ch= 1.40600
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1956/1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 82450
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either 60 cycles 117 Volta or DC 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

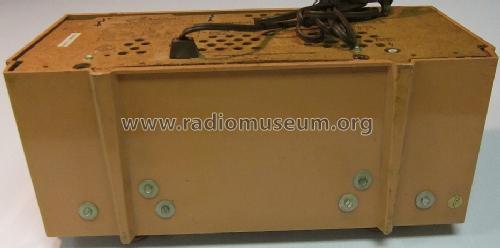

- Model: 3561 Ch= 1.40600 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 7 x 5.75 inch / 381 x 178 x 146 mm
- Notes
-
The Arvin 3561 is an AC/DC operated 6 tube BC band receiver. Has Qty(2) PM speakers.
Available in the colors ivory or tan.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 17, 1957
- Mentioned in
- Table Top Radios Vol. 4 Stein 2003 (page 52.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 698 models, 487 with images and 567 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
