528CS Phantom Mate Ch= 518
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33041

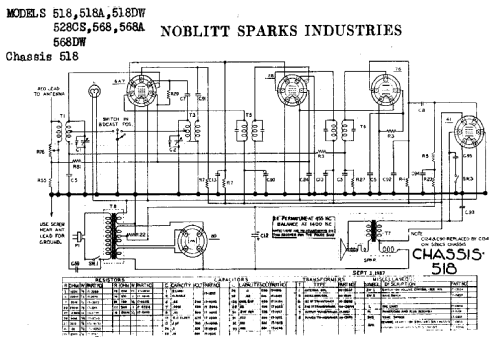

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 528CS Phantom Mate Ch= 518 - Arvin, brand of Noblitt-Sparks
- Shape
- Console: Chairside Radio.
- Notes
- The Arvin Phantom Mate Chairside model 528CS is featured in the flier "New 1938 Arvin Radios" from 1937 which emphasizes on the "Phantom Filter Circuit (in "Life" October 18th 1937) and in ads on "ten years of radio progress". But it is not pictured there. The Arvin Phantom Mate 528CS is a cheap Chairside model.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (October 1937.)
