• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33045

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

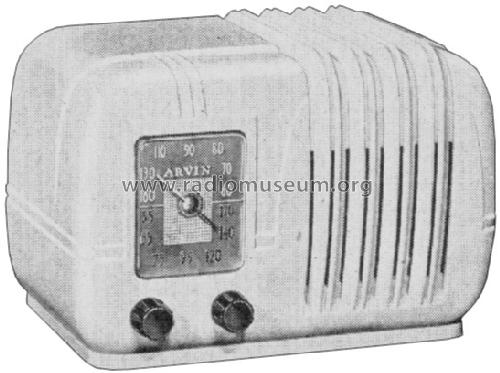

• Model: 544 Ch= RE-201 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel, with any shape - general.

• Notes
• Walnut $19.95, Ivory $21.95.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Guide to Old Radios

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 1, Folder 461-7)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (June 1947 page 23.)

• Literature/Schematics (3)
• Table Top Radios Vol. 1 Stein 98 (page 39.)

• Other Models

• Here you find 697 models, 486 with images and 554 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
