60R58 Ch= 1.50300
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85213
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / C: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 60R58 Ch= 1.50300 - Arvin, brand of Noblitt-Sparks
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Source of data
- Beitman Radio Diagrams, Vol. 21, 1961
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 39)
- Literature/Schematics (1)

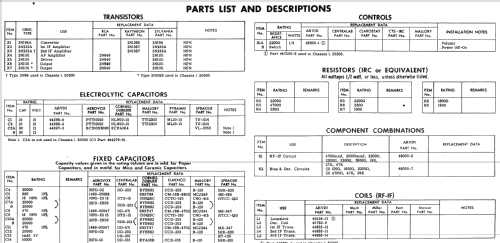

- Photofact Folder, Howard W. SAMS (Set 507 folder 4 date 11-60)
- Literature/Schematics (2)
- Photofact TSM Transistor Radio Series SAMS (TSM-11, April 1962, pages 25-30)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
