- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33085
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

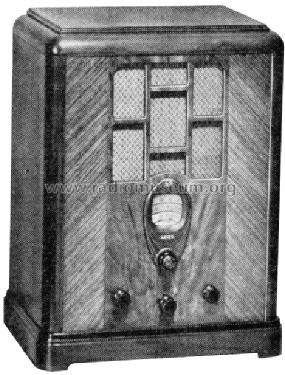

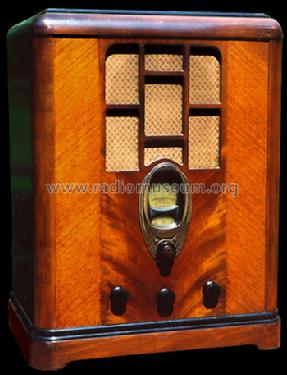

- Model: 61M - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 21.5 x 16 x 11 inch / 546 x 406 x 279 mm
- Notes
- 3 Bands: 535-1750 KHz, 1700-5750 KHz, 5500-18000 KHz. .Home Radio.
- External source of data
- Ernst Erb
- Source of data
- -- Collector info (Sammler)
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Other Models
-
