• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1946–1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 291832

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7GT 12SA7GT 12SK7GT 14R7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

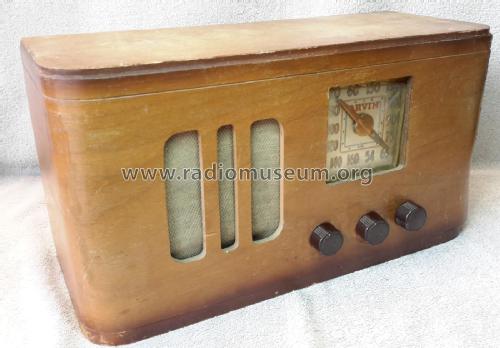

• Model: 664 Ch= RE-206 [Walnut cabinet] - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.25 x 8 x 6 inch / 387 x 203 x 152 mm

• Notes

• This model also was offered with a plastic cabinet.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 20 = covering 1950

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (8-48 Set 3, folder 463-23)

• Author
• Model page created by Robert Barrett. See "Data change" for further contributors.
