• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80672

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 849T Ch=RE369 - Arvin, brand of Noblitt-Sparks

• Shape

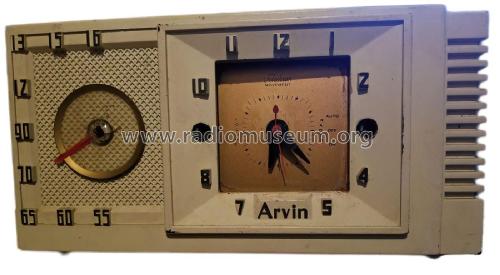

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 9.5 x 5 x 5.375 inch / 241 x 127 x 137 mm

• Notes
• The Arvin models 848T and 849T from Noblitt-Sparks use the chassis RE-369 and have an electric clock for 60 cyles incorporated. The model 848T is color Rosewood, the model 849T can be in color Ivory, Bitter Green or California Tan.

• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-54, set 259, folder 2)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
