• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82456

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N212 2N211 2N94 2N94 2N35 2N214 2N214 1N64

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / "D" 1 x 1.5V & "D" 5 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 9562 Ch= 1.40900 - Arvin, brand of Noblitt-Sparks

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11 x 8.5 x 2.75 inch / 279 x 216 x 70 mm

• Notes

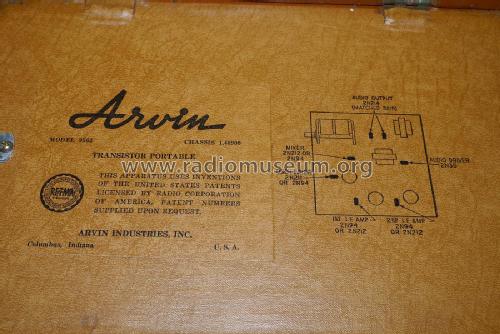

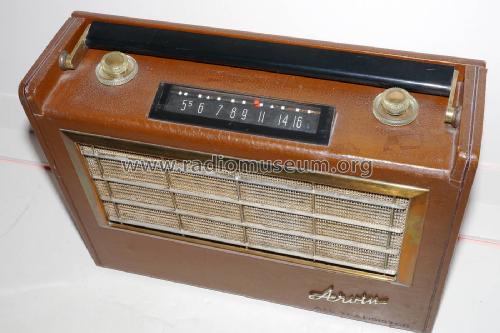

• Arvin Portable AM Radio Model All Transistor 9562 Chassis 1.40900.

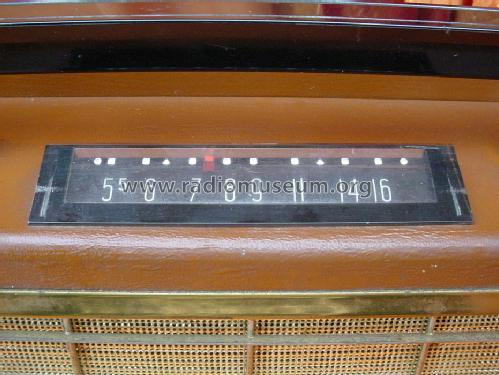

  Leather case, Flip Dial.

  Available colors were Dark Brown Alligator and British Tan.

  Essentially identical to Firestone 4-C-34 except for the badge.

• Net weight (2.2 lb = 1 kg)
• 5 lb 4 oz (5.25 lb) / 2.384 kg

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 348 Folder 1 date 2 - 57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
