957AP Ch= 1.43000
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316613

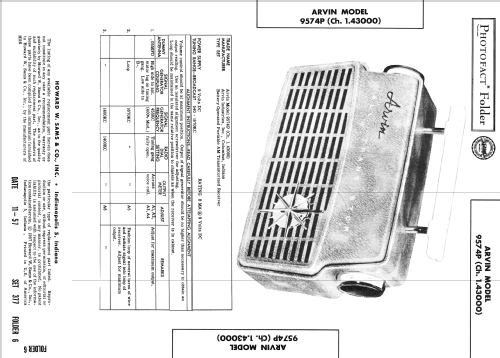

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 957AP Ch= 1.43000 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Arvin model 957AP is a battery operated portable transistorized receiver.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 377 Folder 6 dated 11-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
