441-T Hopalong Cassidy Ch= RE-278 red

Arvin, brand of Noblitt-Sparks Industries

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72762

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 441-T Hopalong Cassidy Ch= RE-278 [red] - Arvin, brand of Noblitt-Sparks
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 209 x 133 x 105 mm / 8.2 x 5.2 x 4.1 inch
  • Notes

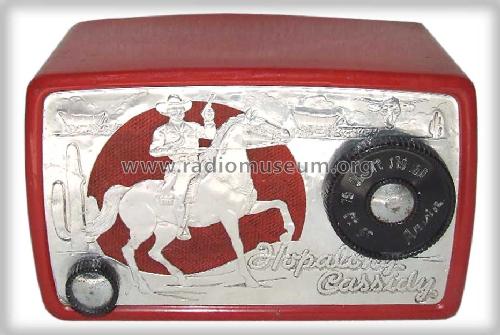

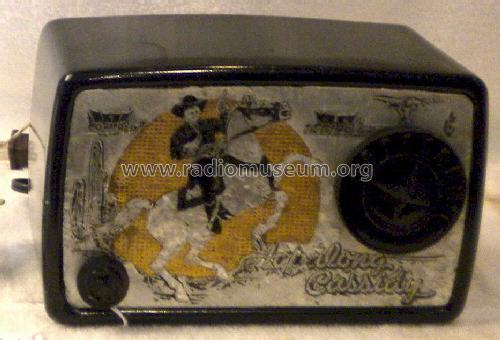

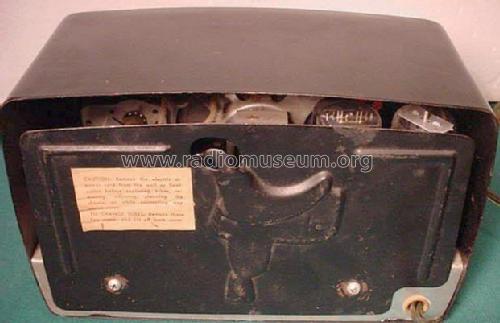

  • Novelty radio called "Hopalong Cassidy", black with "lariatenna" that is designed to look like a rope. The back has a saddle stamped in the metal. Variants: Red/Black, Horse standing/rearing

  • Net weight (2.2 lb = 1 kg)
  • 1.638 kg / 3 lb 9.7 oz (3.608 lb)
  • Price in first year of sale
  • 17.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 21, Copyright 1950
  • Author
  • Model page created by Steven Sostrom. See "Data change" for further contributors.
