• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33056

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 554CCM Ch= RE306 - Arvin, brand of Noblitt-Sparks

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 22 x 34 x 16 inch / 559 x 864 x 406 mm

• Notes

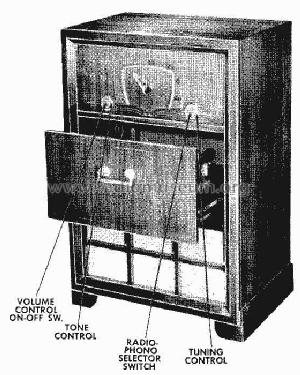

• Arvin model 554CCM is an AC operated radio-phono combination superheterodyne receiver with loop antenna. Color=Blonde.  A Jensen E-962 or E-903 record player is incorporated.



• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Literature/Schematics (1)

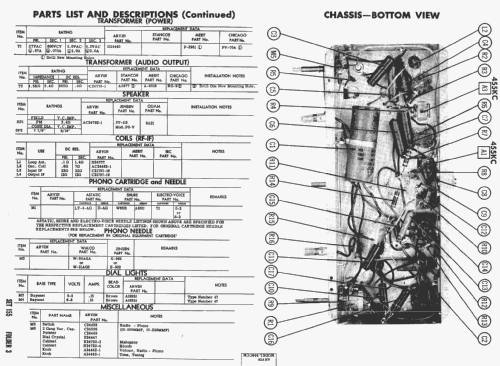

• Rider's Perpetual, Volume 23 (last) = covering up to 1954 (SAMS PhotoFact Date 1-52, set 155, folder 3)

• Other Models

• Here you find 698 models, 487 with images and 567 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
