• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33066

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 12AT7 6BE6 6BA6 6BA6 6T8 6V6GT 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

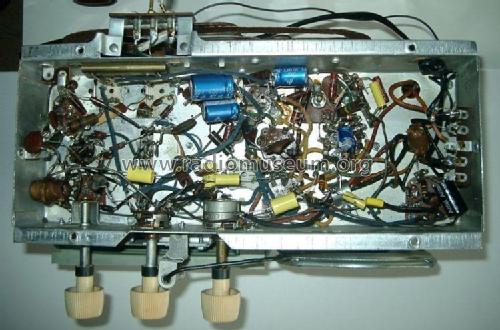

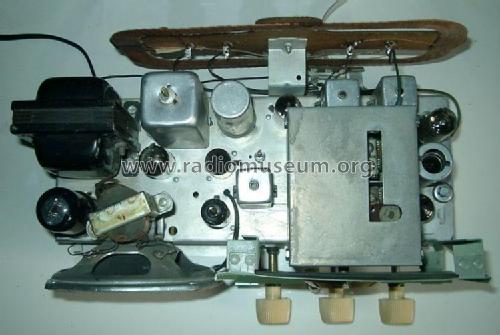

• Model: 580TFM Ch= RE313 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.9 x 6.6 x 7.6 inch / 353 x 168 x 193 mm

• Notes

• Arvin model 580TFM is an AC operated AM-FM superheterodyne receiver with loop antenna. Colors are as follows: Ivory, Willow Green, Sandalwood and Rosewood.

• Price in first year of sale
• 60.00 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 152, folder 2, dated 11-51)
