Shelburne 7210-CM
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1953
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 131168
- Number of Tubes
- 28
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Shelburne 7210-CM - Arvin, brand of Noblitt-Sparks
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 24.75 x 37.69 x 21.75 inch / 629 x 957 x 552 mm
- Notes
- Arvin Shelburne 7210-CM; 21" b/w TV with US standard VHF tuner & with the additional suffix UHF in the model type also equipped with UHF tuner, mahogany cabinet.
CRT 21MP4.
- Source of data
- -- Original prospect or advert

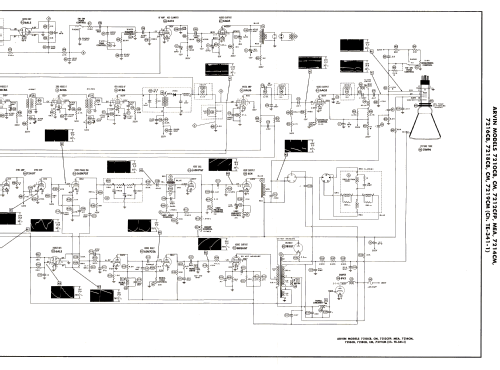

- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 188, Folder 27)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 694 models, 484 with images and 551 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
