• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300696

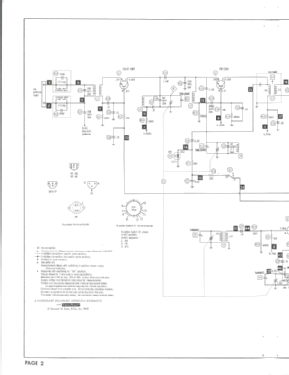

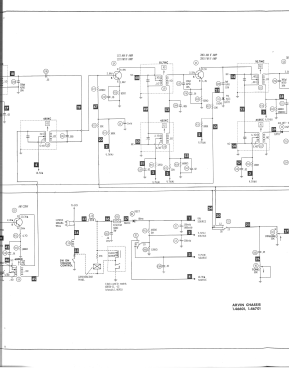

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz; 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State 40R34 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.

• Other Models

• Here you find 697 models, 487 with images and 556 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
