• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1962 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349323

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6BZ7 6X8 6CB6 6CB6 6CB6 6BA6 12AU7 6AU6 6AL5 6AV6 6V6 6AC7 12AU7 6SN7 6S4 6AL5 6SN7 6BQ6 6W4 1B3 5U4 17LP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

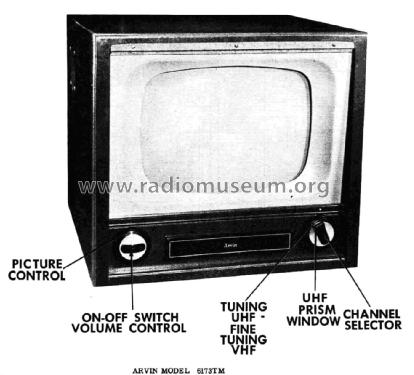

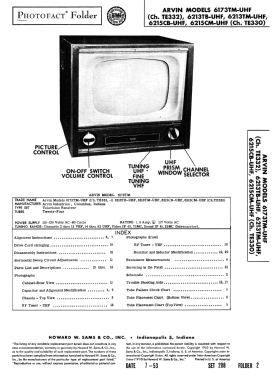

• Model: TV Set 6173 TM - UHF - Arvin, brand of Noblitt-Sparks

• Notes

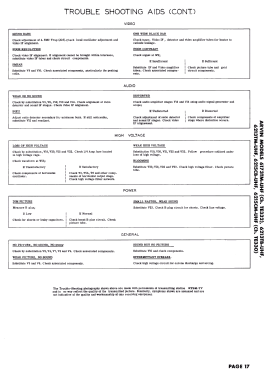

• Black/white TV with VHF and UHF. 17 inch CRT with 70° deflection.

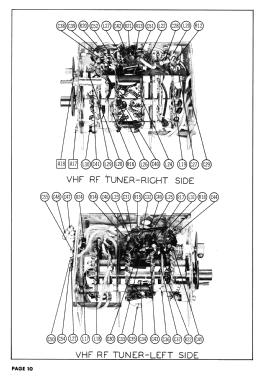

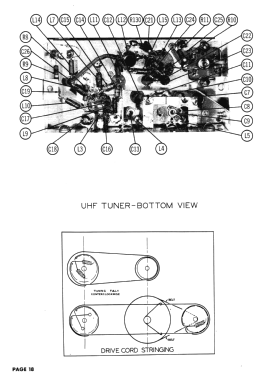

  The uploaded diagram does not show either VHF and UHF tuners. The acronym indicates that UHF is present, so the number of tubes should be 24.

• Mentioned in
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editor, Italy vol. I, II edition 1962.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
