Williamsburg 7212-MEA Ch= TE-341-1
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 131161

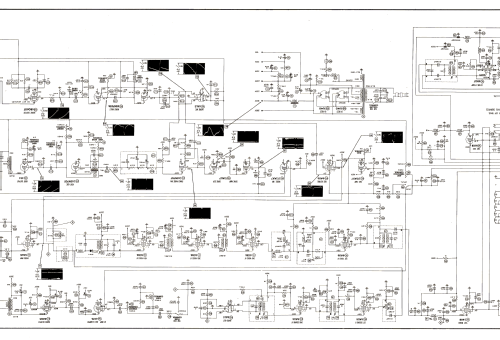

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 28
- Valves / Tubes
- 6AF4 6BQ7 6AK5 6X8 6AU6 6CB6 6CB6 6CB6 6AU6 6AQ5 12AX7 6AU6 6AU6 6AU6 6AL5 6AT6 6AQ5 12AU7 6SN7GT 6S4 6AL5 6SN7GTA 6BQ6GT 6V3 1B3GT 5U4G 5U4G 21MP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Williamsburg 7212-MEA Ch= TE-341-1 - Arvin, brand of Noblitt-Sparks
- Shape
- Console with any shape - in general
- Notes
-
Arvin model 7212MEA is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis TE-341-1, VHF & UHF tuner AE25267-2 and picture tube 21MP4. Blonde cabinet with full-size doors.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)

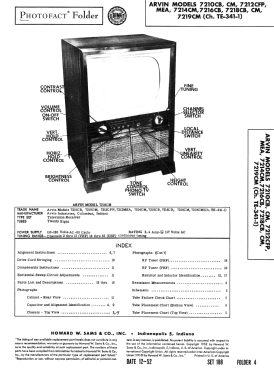

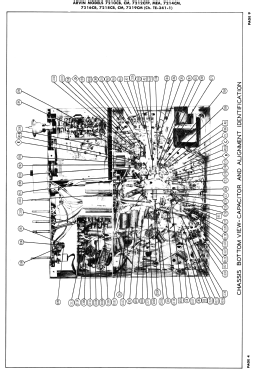

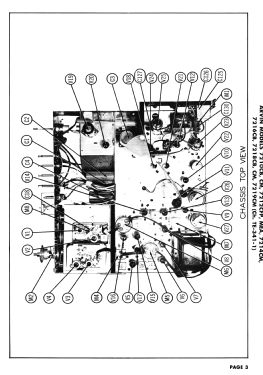

- Photofact Folder, Howard W. SAMS (Set 188, folder 4, dated 12-52)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
