• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185285

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF185 BF185 BF185 BF184 BF184 BF184 BF184 BC108 AC128 AD161 AD162

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

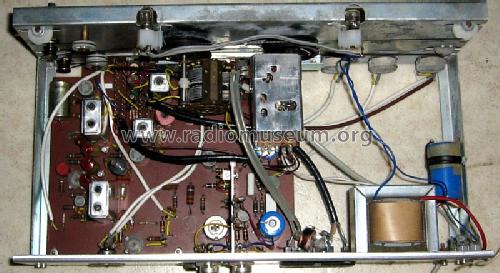

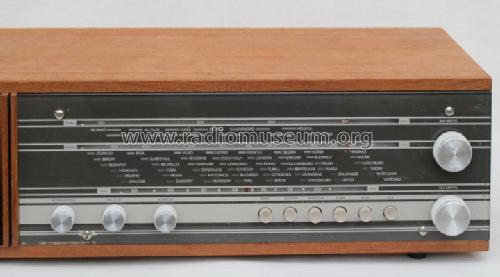

• Model: 1101T - Asa Radio Oy; Turku

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 150 x 215 mm / 21.7 x 5.9 x 8.5 inch

• Notes
• Electrically similar with ASA model 1189T. Speaker in closed enclosure.
  Built-in FM antenna. Connectors for: Record player, External speaker.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)
