1189T
Asa Radio Oy; Turku
- Country
- Finland
- Manufacturer / Brand
- Asa Radio Oy; Turku
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 185201

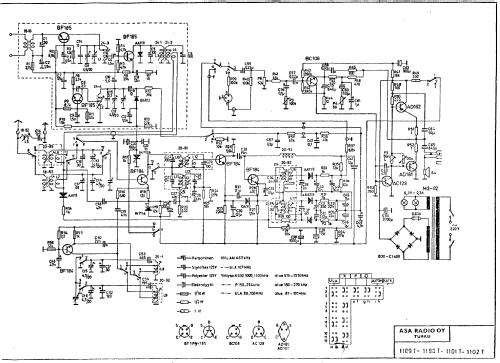

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1189T - Asa Radio Oy; Turku
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 605 x 155 x 210 mm / 23.8 x 6.1 x 8.3 inch
- Notes
- Speaker 5 x 8", Built-in FM antenna;

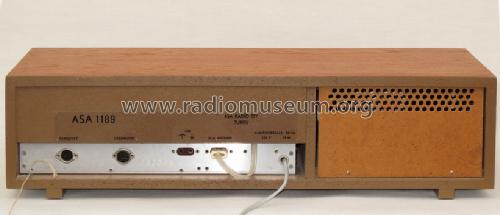

Connectors for: Turntable, External speaker.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Ake Nyholm. See "Data change" for further contributors.
