• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226323

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• BF185 BF185 BF185 BF184 BF184 BF184 BF184 BC108 BC108 AC128 AC128 AD161 AD162 AC126 AD149 AA119 OA90 BA102 1N711A 1N713A

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org

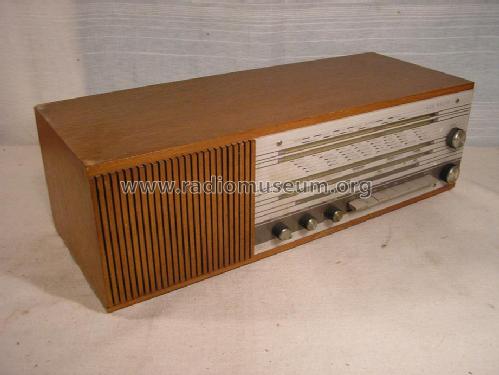

• Model: 1587 - Asa Radio Oy; Turku

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 558 x 170 x 210 mm / 22 x 6.7 x 8.3 inch

• Notes

• Dial lamps: 2x 6,3V / 0,3A
  Rectifier: B30C1400

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
