• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193890

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• DF96 DC96 DF96 DK96 DF96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 485/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220; 240 / 12 & 80 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org

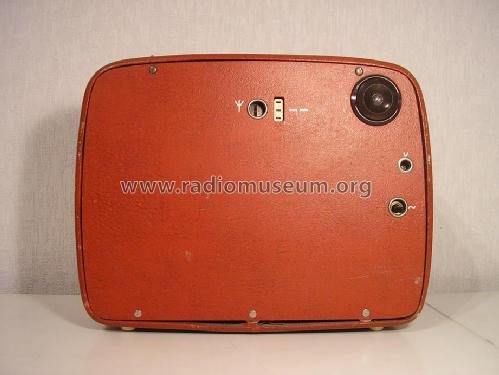

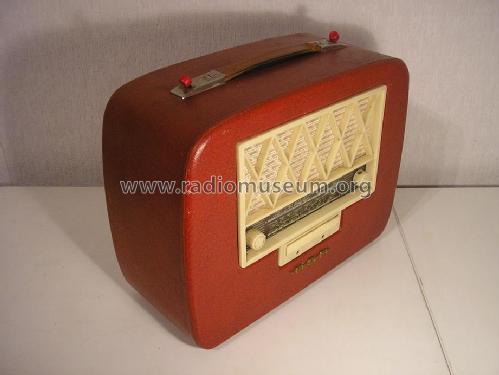

• Model: 832M - Asa Radio Oy; Turku

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 270 x 150 mm / 13.8 x 10.6 x 5.9 inch

• Notes
• Selenium rectifier: E250 C75.

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.
