992TM
Asa Radio Oy; Turku
- Country
- Finland
- Manufacturer / Brand
- Asa Radio Oy; Turku
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137725
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 465 / 10700 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage

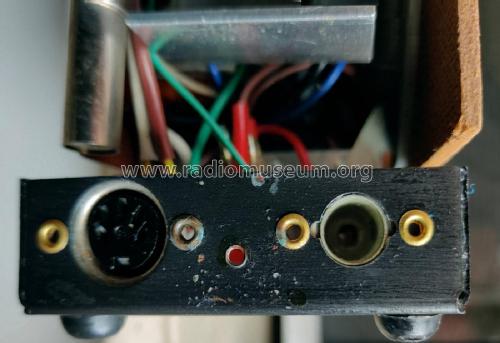

- Batteries / addl. power jack / 6 x 1,5 /12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material

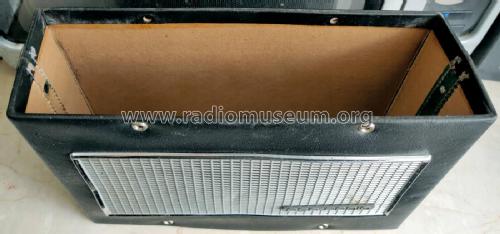

- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 992TM - Asa Radio Oy; Turku
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 180 x 85 mm / 10.8 x 7.1 x 3.3 inch
- Notes
-
Set can be used in car with a special rack.
Speaker dimension: 127×154 mm.
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by a member from FIN. See "Data change" for further contributors.
