• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1962 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 171145

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 EF80 PCF82 PCF82 PCF80 PCF80 PCL84 ECH81 EBF89 PCL86 ECC82 PCL85 PL36 PY88 DY87 AW59-90

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

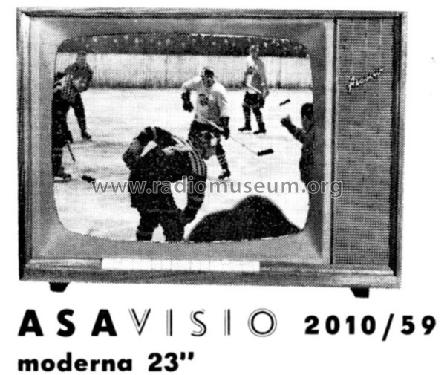

• Model: Asavisio 2010 - Asa Radio Oy; Turku

• Shape
• Tablemodel with Push Buttons.

• Notes
• UHF optional.

• Literature/Schematics (1)

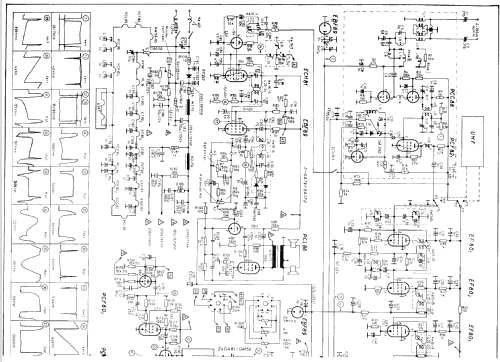

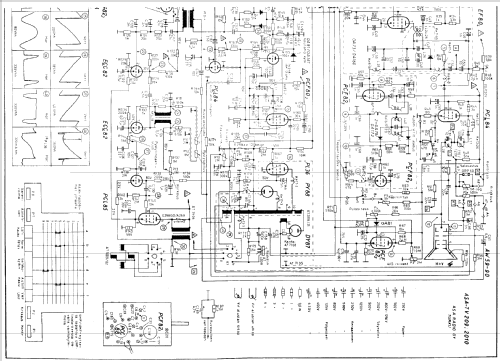

• -- Schematic

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.
