• Country
• Finland

• Manufacturer / Brand
• Asa Radio Oy; Turku

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95364

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 AF125 AF126 AF126 AF126 AC126 AC126 AC127 AC132 AC128 AC128 1,4St1 AA119 AA119 BA102

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

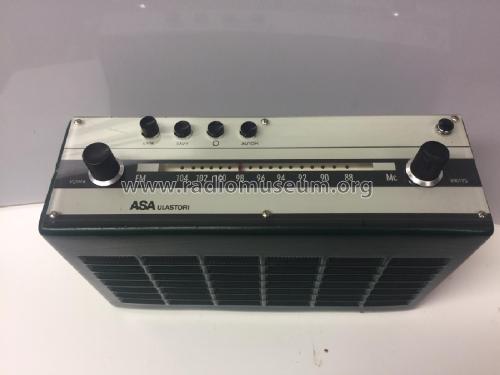

• Model: Ulastori 1194 - Asa Radio Oy; Turku

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 175 x 80 mm / 10.2 x 6.9 x 3.1 inch

• Source of data
• -- Original-techn. papers.
