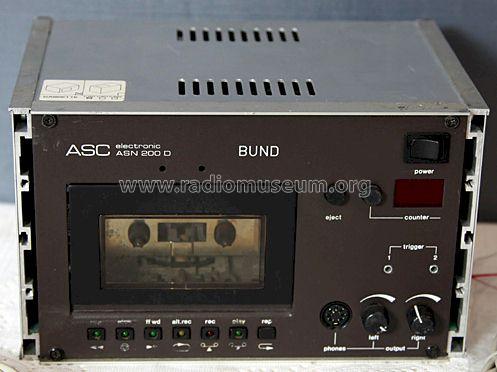

ASN 200 D Ausführung Bund

ASC; Hösbach und Aschaffenburg

  • Year
  • 1983–1985 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 215336

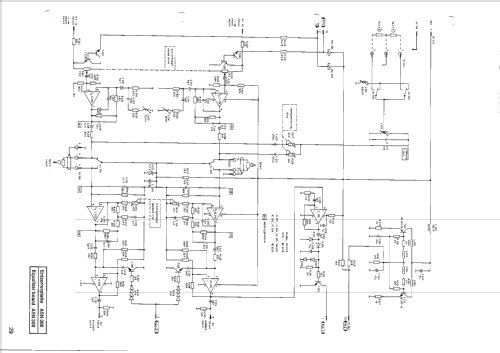

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Powered by external power supply or a main unit. / 20-28 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: ASN 200 D Ausführung Bund - ASC; Hösbach und Aschaffenburg
  • Shape
  • Chassis only or for «building in»
  • Notes
  • ASC electronic ASN 200 D, Ausführung Bund;
    Elektronische Laufwerksteuerung. Mit Papst Multidrive. Vergleiche mit ASC >Universal-Cassetten-Lehrgerät ASN 300<.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Mentioned in
  • Funkschau (11/1985, S. 50 / Beschreibung)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
