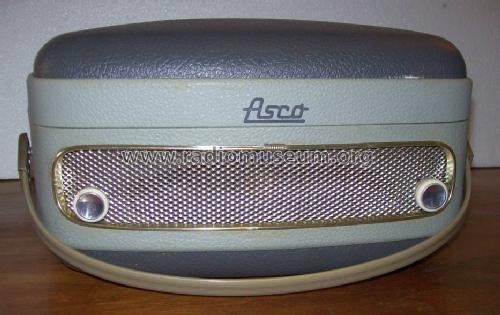

Prinz NK2
ASCO - Arthur Steidinger & Co.KG
- Country
- Germany
- Manufacturer / Brand
- ASCO - Arthur Steidinger & Co.KG
- Year
- 1960–1962
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 24096
- Number of Tubes
- 1
- Valves / Tubes
- ECL86
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-127; 150-160; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Prinz NK2 - ASCO - Arthur Steidinger & Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 290 x 180 mm / 13 x 11.4 x 7.1 inch
- Notes
-
Eingebauter Plattenspieler: Dual 300A mit 4 Geschwindigkeiten, Stereo-Kristallsystem Dual CDS520 mit Doppelnadel DN3 für Normal- und Mikrorillenplatten. Einbau-Mono Verstärker. Für Stereowiedergabe kann ein 2. Verstärker mit Lautsprecher an die am Koffer vorhandene DIN-Buchse angeschlossen werden. Netzkontrolleuchte auf dem Trägerboden des Plattenspielerchassis.
- Net weight (2.2 lb = 1 kg)
- 4.9 kg / 10 lb 12.7 oz (10.793 lb)
- Price in first year of sale
- 198.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (13/1960, S. 490 / Vorstellung (Messe Hannover))
