• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1950/1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73737

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110/127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

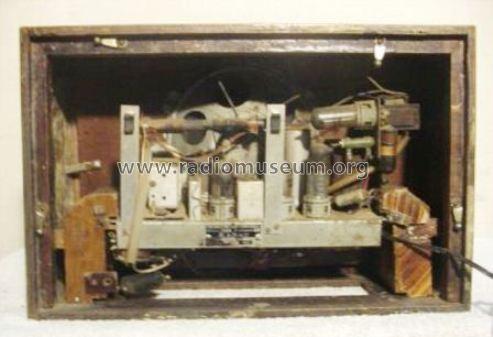

• Model: 453-A - Askar, Ascar; Irún

• Notes
• UL42 = 1947

• Source of data
• -- Schematic

• Author
• Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
