• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1953–1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95012

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EBF80 EBC41 EL84 EM80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

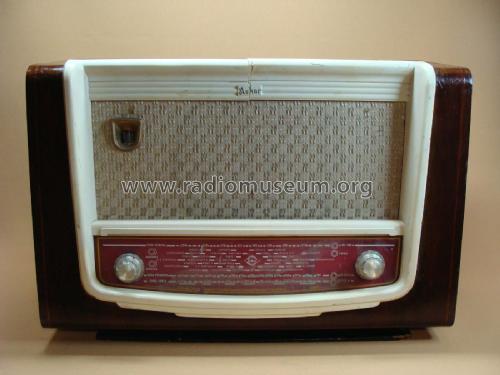

• Model: 455-A - Askar, Ascar; Irún

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Santiago Lopez-Zapatero. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
