• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174865

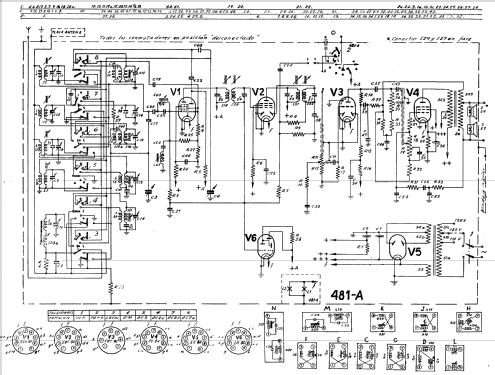

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EBF80 EBC90 EL84 EM80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110;125;150 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 481-A - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Notes
• Lleva dos altavoces

• Price in first year of sale
• 4,620.00 ESP

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Anuncio La Vanguardia Española 24 diciembre 1957

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
