• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110675

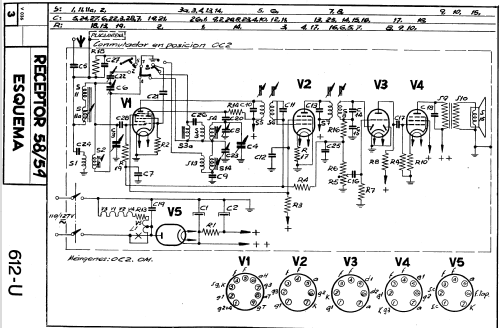

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC90 HL94 HY90

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 612-U - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Price in first year of sale
• 2,281.00 ESP

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Anuncio La Vanguardia Española 26 Octubre 1958

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
