617-A
Askar, Ascar; Irún
- Country
- Spain
- Manufacturer / Brand
- Askar, Ascar; Irún
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118414
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 617-A - Askar, Ascar; Irún
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 330 x 225 mm / 21.3 x 13 x 8.9 inch
- Notes
-
Para recepción en OM dispone de antena giratoria de ferrita.

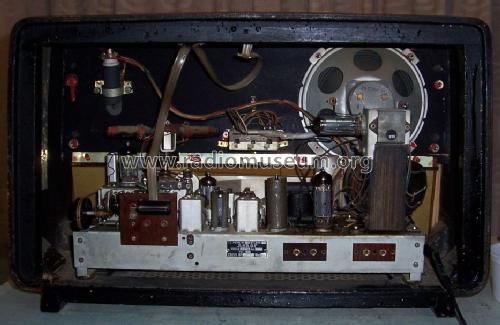

Chasis y circuito eléctrico idénticos a la Philips B5E83A
- Price in first year of sale
- 5,855.00 ESP
- Source of data
- - - Data from my own collection
- Literature/Schematics (1)
- Anuncio La Vanguardia Española 26 Octubre 1958
- Author
- Model page created by Jesus Maria Sanz Lopez. See "Data change" for further contributors.
