• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 172696

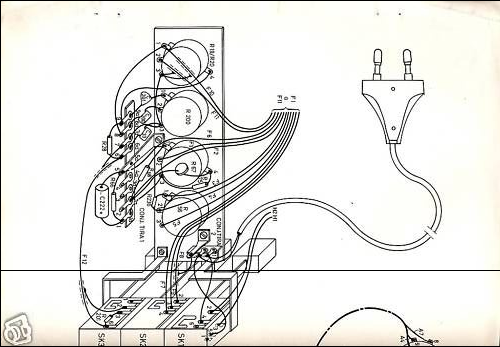

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• A47-11W

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: AE-48-T-235-A - Askar, Ascar; Irún

• Dimensions (WHD)
• 530 x 400 x 200 mm / 20.9 x 15.7 x 7.9 inch

• Notes

• Askar AE-48-T-235-A

  TV B/N VHF (E2-E11); UHF (21-69). TRC: 19", Portable

• Mentioned in
• Anuncio ABC octubre 1968

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
