• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1958–1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73736

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

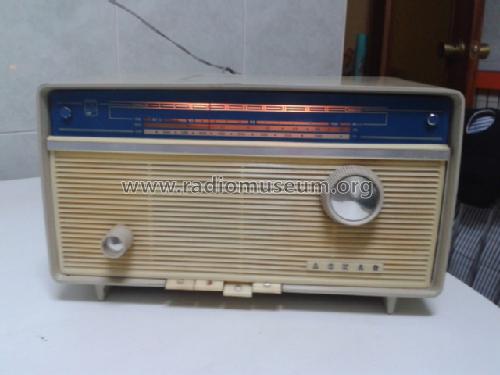

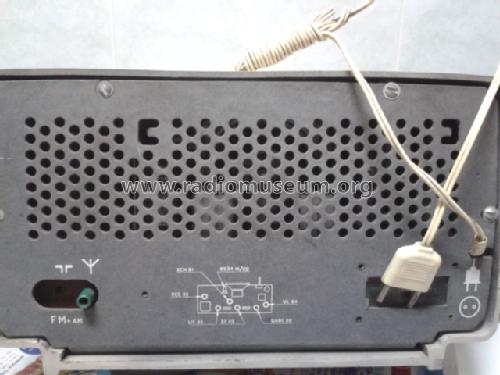

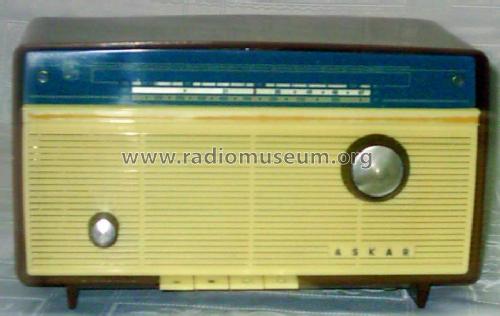

• Model: AE-1223-A - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 293 x 177 x 158 mm / 11.5 x 7 x 6.2 inch

• Notes

• Usa el mismo esquema que la Philips B2E34A.

  Precio catálogo julio 1963: 2.596 pts. + I.L. 292,05 = PVP 2.888,05 pts.

• Net weight (2.2 lb = 1 kg)
• 3.350 kg / 7 lb 6.1 oz (7.379 lb)

• Author
• Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
