AE-4520-A
Askar, Ascar; Irún
- Country
- Spain
- Manufacturer / Brand
- Askar, Ascar; Irún
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 218342
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AE-4520-A - Askar, Ascar; Irún
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 530 x 340 x 350 mm / 20.9 x 13.4 x 13.8 inch
- Notes
-
Askar AE-4520-A
2 Altavoces elípticos de 15 x 11 cm.

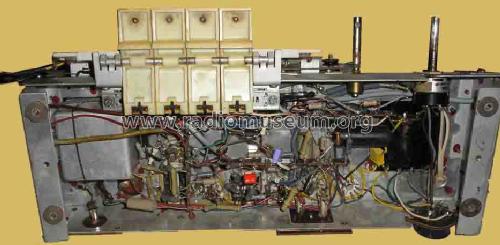

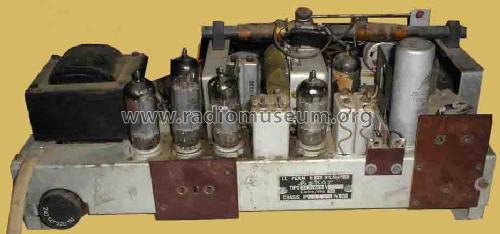

El chasis parece idéntico al del modelo AE-1432-A
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Author
- Model page created by José Moreno-Conej. See "Data change" for further contributors.
