• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 281542

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCF80 PCF80 PCL86 PCL85 PC900 PCF801 EF183 EF184 EF184 PCL84 ECH84 ECH84 PCF802 PL500 PY88 DY87 PCF80 PF86 PCL85 A47-11W

• Number of Transistors
• 2

• Semiconductors
• AF139 AF139 BY114 BA100 OA70 OA81

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AE-48-T-524-A - Askar, Ascar; Irún

• Shape
• Tablemodel, low profile (big size).

• Notes

• Askar, Industrias Radioeléctricas Gortari, AE-48-T-524-A

  TV B/N 19"

  Selector de VHF tipo Philips-Copresa ZBA-366840
  Sintonizador de UHF tipo Philips-Copresa ZB 3122 197 5948

• Mentioned in
• Revista Española de Electrónica (REDE) nº 207 febrero 1972

• Literature/Schematics (1)

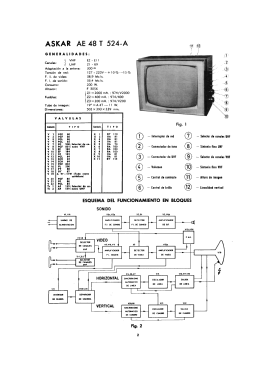

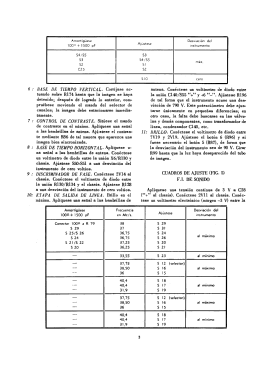

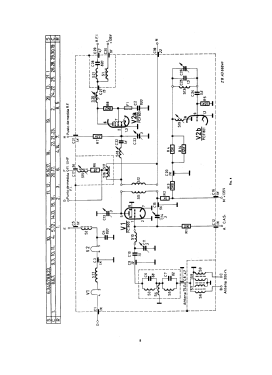

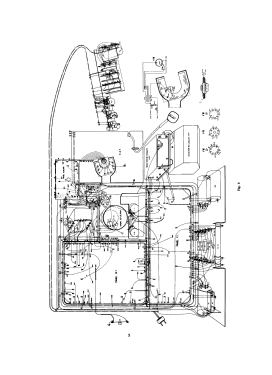

• -- Schematic (Esquemario TV REDE, Tomo IV, 1968)

• Literature/Schematics (2)
• La Vanguardia Española noviembre 1966

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
