GR-518-A Ch= 481-A
Askar, Ascar; Irún
- Country
- Spain
- Manufacturer / Brand
- Askar, Ascar; Irún
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175766
Anuncio ABC 22 Diciembre 1957

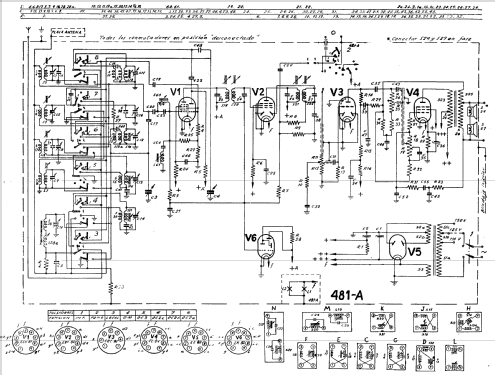

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: GR-518-A Ch= 481-A - Askar, Ascar; Irún
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Askar GR-518-A Ch= 481-A
- Price in first year of sale
- 11,177.00 ESP
- Mentioned in
- Anuncio La Vanguardia Española 27 Diciembre 1957
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
