• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1961–1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 314778

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

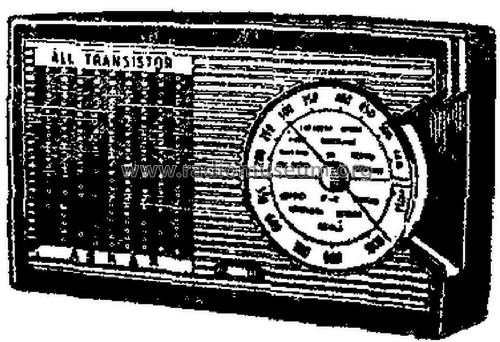

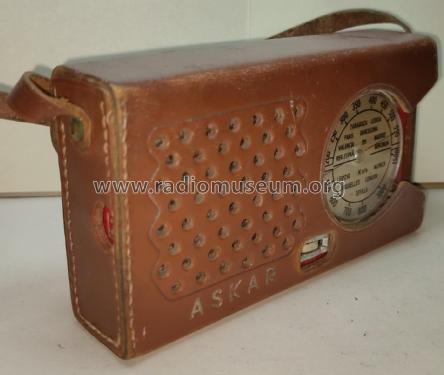

• Model: Personal AE-3111-T - Askar, Ascar; Irún

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 145 x 80 x 35 mm / 5.7 x 3.1 x 1.4 inch

• Notes

• Askar AE-3111-T Personal

  Similar to Philips L0X95T

• Net weight (2.2 lb = 1 kg)
• 0.350 kg / 0 lb 12.3 oz (0.771 lb)

• Price in first year of sale
• 1,899.00 pts

• Mentioned in
• Anuncios La Vanguardia Española/ABC noviembre 1961 a marzo 1963

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Askar, Ascar; Irún
