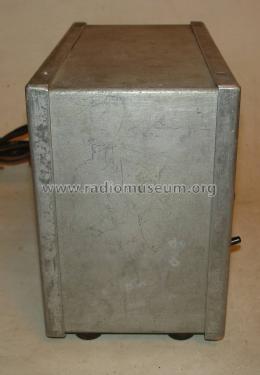

Prüfgenerator EPG1
Assmann, W., GmbH; Bad Homburg
- Country
- Germany
- Manufacturer / Brand
- Assmann, W., GmbH; Bad Homburg
- Year
- 1948 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 248515
- Main principle
- Transmitter
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Prüfgenerator EPG1 - Assmann, W., GmbH; Bad Homburg
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 220 x 110 x 160 mm / 8.7 x 4.3 x 6.3 inch
- Notes
-
Modulierbarer Prüfgenerator EPG1 mit 12 wählbaren Festfrequenzen:
100/160/128/455/465/468/473/480/546/1000/1600/6000 kHz;
Ausgangspegel einstellbar.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
