- Country
- Australia
- Manufacturer / Brand
- Air Chief, (brand of NASCO), National Automotive Service Company (General Motors-Holden); Melbourne.
- Year
- 1963
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 270303
- Number of Transistors
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

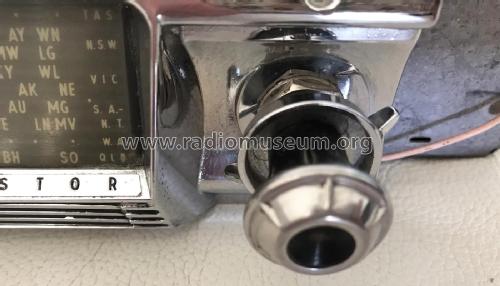

- Model: Diamond Dot MN-C6B - Air Chief, brand of NASCO,
- Shape
- Chassis only or for «building in»
- Notes
-
This model was designed specifically for the EH and EJ Holden cars. Manual tuning. Battery negative to chassis.
Manufactured by Radio Corporation (Astor) for NASCO (General Motors Holden).
- Price in first year of sale
- 49.35 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Air Chief Service Data Model MN-C6B-1, 28/8/1963.)
- Literature/Schematics (2)
- J.R. Publications Car Radio Service Handbook (Volume 1, Page A49a.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
