Play-Gram EML
Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Year
- 1958/1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263327
-
- alternative name: Radio Corp.of Australia
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details

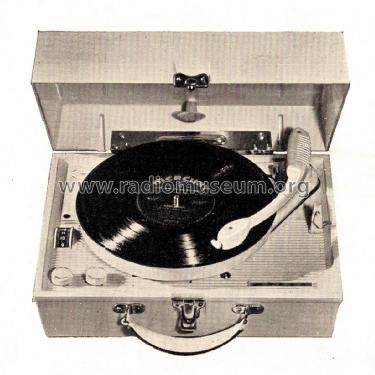

- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Play-Gram EML - Astor brand, Radio Corporation
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Permeability tuned. Solid state rectifier.
Record player 4-speed, single play Collaro type 4/554.
Cabinet styling colours: Pink/Charcoal, Coral/Dark Green, Ivory/Charcoal, Blossom Pink/Charcoal, Lime/Charcoal, Lime/Tan,Grey/Cherry Red, Lawn Green/Charcoal & Cherry Red/Charcoal.
- Price in first year of sale
- 40.95 AUS £
- Literature/Schematics (1)

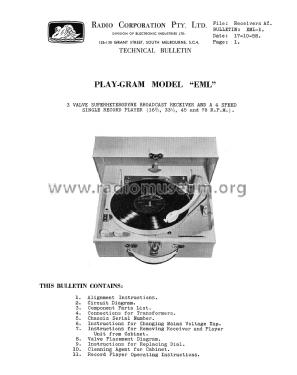

- - - Manufacturers Literature (Astor Technical Bulletin EML-1, 17/10/1958.)
- Literature/Schematics (2)

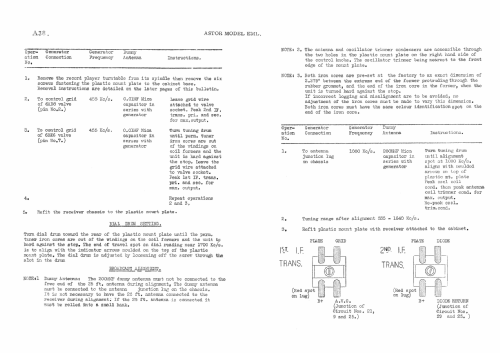

- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A38.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
