Royal 25" Videophonic TB037 Ch= Series 8A
Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Year
- 1969–1971
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 283089
-
- alternative name: Radio Corp.of Australia
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Valves / Tubes
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

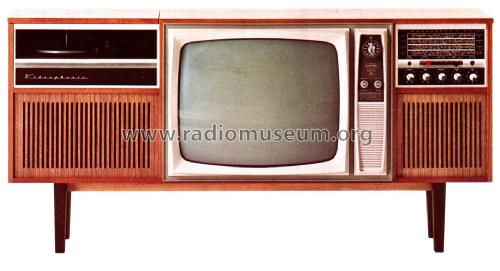

- Model: Royal 25" Videophonic TB037 Ch= Series 8A - Astor brand, Radio Corporation
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 63.25 x 21.34375 x 14.75 inch / 1607 x 542 x 375 mm
- Notes
-
For details and specifications see indentical Model R53G
- Price in first year of sale
- 529.00 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1969 to Feb 1971.)
- Literature/Schematics (1)
- Astor Series 8A Data Sheets
- Literature/Schematics (2)
- J. R. Publications "Television Service Handbook" Group 13, April 1970, Page A69b.
- Literature/Schematics (3)
- Astor Service Data G17CH1-1 (Issue 2), 16/9/1970.
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
