• Country
• Australia

• Manufacturer / Brand
• Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152346

• • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6B8G 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

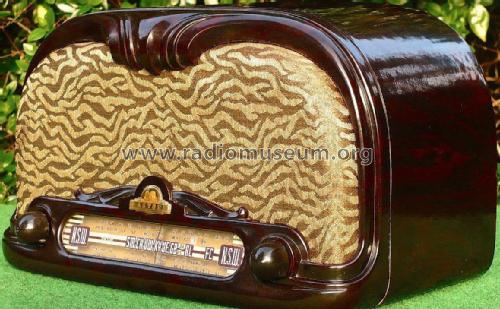

• Model: "Widow's Peak" GS - Astor brand, Radio Corporation

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 295 x 178 x 190 mm / 11.6 x 7 x 7.5 inch

• Notes

• Reflex circuit with negative feedback similar to Astor KM. Case made from urea formaldehyde.

  Colours available: Cream, Light Green, Pale Blue, Walnut, Amber & Ivory.

• Price in first year of sale
• 18.90 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VIII

• Literature/Schematics (1)
• - - Manufacturers Literature (Astor Technical Bulletins GS-1, 28/4/1949; GS-2, 20/5/1949 & GS-3, 8/8/1949.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 54.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
