Oscilloscope (Osciloscopio) AI-651
Ataio Ingenieros, S.A. Madrid
- Country
- Spain
- Manufacturer / Brand
- Ataio Ingenieros, S.A. Madrid
- Year
- 1975 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 323720

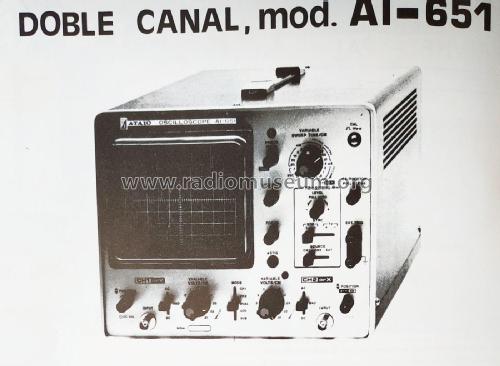

Revista Circuito Impreso nº1 junio 1976
Revista Circuito Impreso nº1 junio 1976
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope AI-651 - Ataio Ingenieros, S.A. Madrid
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 250 x 200 x 368 mm / 9.8 x 7.9 x 14.5 inch
- Notes
-
Osciloscopio de doble canal. Ancho de banda: 15 MHz. Sensibilidad 10 mV
Double channel oscilloscope with 15 Mhz bandwidth. 10 mV sensibility.
- Net weight (2.2 lb = 1 kg)
- 7.1 kg / 15 lb 10.2 oz (15.639 lb)
- Mentioned in
- Revista Circuito Impreso nº 1 junio 1976
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
