• Country
• Italy

• Manufacturer / Brand
• Athena Radio; Milano

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284881

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 120; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

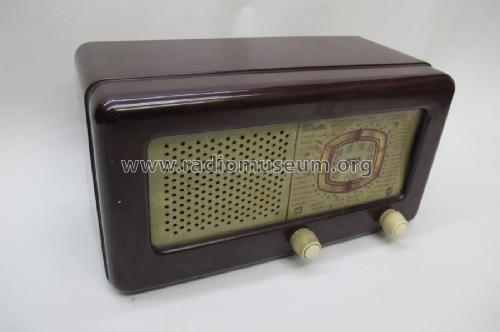

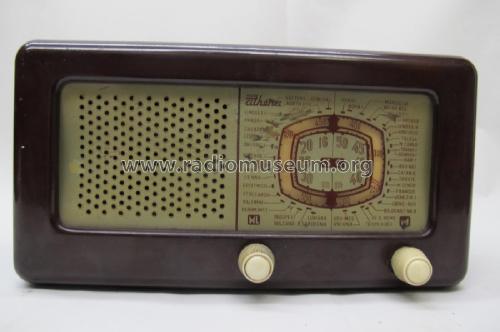

• Model: Audiola - Athena Radio; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 240 x 130 x 120 mm / 9.4 x 5.1 x 4.7 inch

• Author
• Model page created by Maurizio Nicolussi. See "Data change" for further contributors.
