Radiolampada 546B
Athena Radio; Milano
- Country
- Italy
- Manufacturer / Brand
- Athena Radio; Milano
- Year
- 1947/1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316134

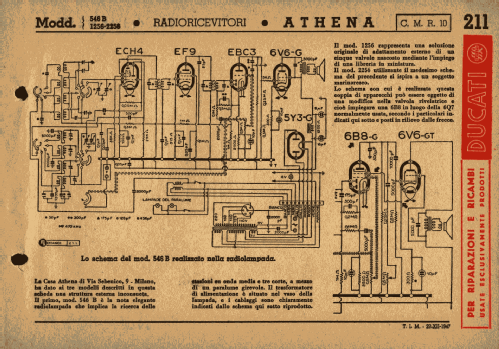

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Radiolampada 546B - Athena Radio; Milano
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 670 x 670 x 670 mm / 26.4 x 26.4 x 26.4 inch
- Notes
-
Onde Medie e tre gamme di Onde Corte. Presa per giradischi.
Abat-jour con funzionamento indipendente dalla radio.
- Mentioned in
- Notiziario di Radio Industria, aprile 1947 e 1948
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Angelo Vannini. See "Data change" for further contributors.
