- Country
- Italy
- Manufacturer / Brand
- Atlantic Electric S.p.A. (Amaco); Milano
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 316516
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 3F12: 2 x 4,5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 cm = 3.1 inch
- Power out
- 0.45 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

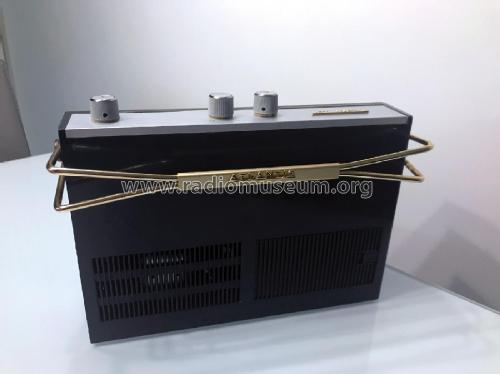

- Model: T-398FM - Atlantic Electric S.p.A. Amaco
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 185 x 90 mm / 10.8 x 7.3 x 3.5 inch
- Notes
-
2 diodes: SFD111
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Price in first year of sale
- 48.90 lire ITA
- Mentioned in
- Catalogo ANIE (Vol.9 - 1963/64)
- Author
- Model page created by Massimo Maceli. See "Data change" for further contributors.
