- Country
- Italy
- Manufacturer / Brand
- Atlantic Radio; Borgaro Torinese (Torino)
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192476

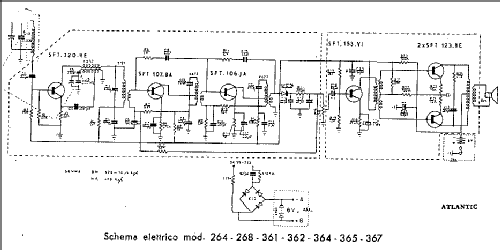

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 125-220 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T268 - Atlantic Radio; Borgaro
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 85 x 45 mm / 5.9 x 3.3 x 1.8 inch
- Notes
- Nel circuito è presente il diodo SFD106 come rivelatore.
Radio a transistor con alimentazione ad accumulatori a secco ricaricabili durante il funzionamento in c.a.
Mobile in materiale plastico antiurto nei colori noisette e marrone. Antenna in ferrite incorporata.
- Price in first year of sale
- 25,000.00 ITL
- Mentioned in
- Catalogo ANIE (n. 7)
- Author
- Model page created by Fabio Masetti. See "Data change" for further contributors.
