- Country
- Italy
- Manufacturer / Brand
- Atlantic Radio; Borgaro Torinese (Torino)
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171046
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T276 - Atlantic Radio; Borgaro
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Gamme di ricezione:
OC: 5,9 ÷ 6,3 MHz.
OM: 520 ÷ 1605 kHz.
- Literature/Schematics (1)

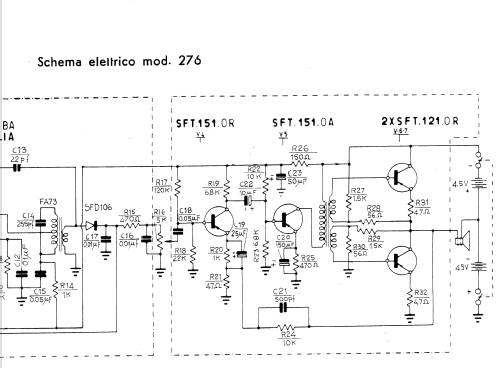

- -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
