T 398 FM T398FM
Atlantic Radio; Borgaro Torinese (Torino)
- Country
- Italy
- Manufacturer / Brand
- Atlantic Radio; Borgaro Torinese (Torino)
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74457

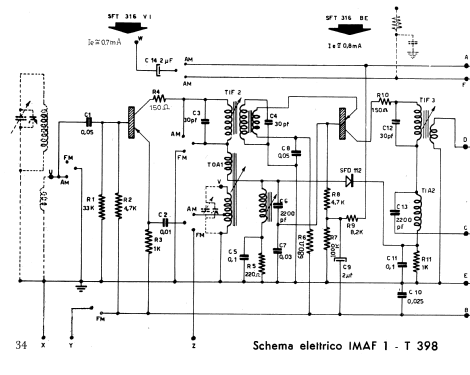

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T 398 FM T398FM - Atlantic Radio; Borgaro
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 275 x 185 x 90 mm / 10.8 x 7.3 x 3.5 inch
- Price in first year of sale
- 39,900.00 ITL
- Mentioned in
- Guida Pratica Transistor Radios (Catalogo ANIE 1965-66)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
