• Year
  • 1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145217

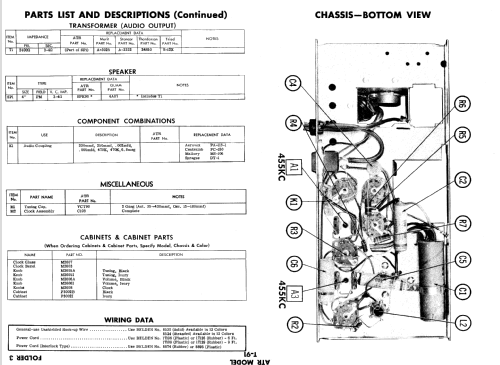

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • from Radiomuseum.org
  • Model: T-91 - ATR Electronics, St.Paul
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • The ATR Electronics Model T-91 is an AC Operated AM Superheterodyne Receiver with Electric Clock.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
