- Country
- United States of America (USA)
- Manufacturer / Brand
- Atwater Kent Mfg. Co.; Philadelphia, USA
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33192
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

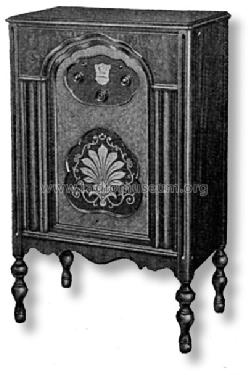

- Model: 1055 - Atwater Kent Mfg. Co.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Atwater Kent 1055 TRF radio console used the #100 wood cabinet and the same chassis as the Atwater Kent 66, which used a different cabinet.
According to Ralph O. Williams, author of The Atwater Kent Radios, The AWA Review Vol. 12, 1999, the top-of-the-line in the 60's series was the Model 66.
There is one dial (primary tuning control knob).
- Price in first year of sale
- 109.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- The Complete Price Guide to Antique Radios: Pre-War Consoles (page 43.)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 3 = 1933 and before (pages 3-40 to 3-42 (Model 66).)
- Literature/Schematics (2)
- The AWA Review Vol. 12, 1999, The Atwater Kent Radios, by Ralph O. Williams, pages 169-171.
- Literature/Schematics (3)
- -- Original prospect or advert ("L'Illustrazione Italiana" Trevis editor, number 51 December 1930)
